MainBoards NO SALES TAX IN MOST STATES- Shipping Charges only 6% AMD MOTHERBOARDS

PCChips "M811LU" KT266A Chipset Motherboard for AMD Socket A CPU -RETAIL Specifications: Supported CPU: Socket A AMD Athlon/Duron Processor, Chipset: VIA KT266A + VT8235, FSB: 200/266MHz, RAM: 2x DIMM for DDR200/266 Max 2G, BIDE: 2x UltraDMA 133 up to 4 Devices, Slots: 1x AGP 4X, 5x PCI Ports: 2xPS2,1xLPT,1xCOM,6xUSB(rear 4),1xLAN,Audio Ports, Onboard Audio: VIA VT1612A Audio Codec, Onboard LAN: VIA VT6103 10/100Mbps Form Factor: ATX $58.00 includes shipping

PCCHIPS "M863G V1.5" SiS741GX Chipset Motherboard for AMD Socket A CPU -RETAIL Specifications: Supported CPU: Socket A for AMD Athlon XP Processor- Chipset: SiS741GX + SiS963L FSB: 333/266MHz- RAM: 2x DIMM for DDR333/266 Max 2GB- IDE: 2x UDMA 133 up to 4 Devices Slots: 1x AGP 8X, 2x PCI, 1x CNR- Ports: 2xPS/2,1xCOM,1xLPT,1xVGA,1xLAN,6xUSB2.0(Rear 4),Audio Ports Onboard Audio: C-Media 2-Channel AC97 CODEC- Onboard Video: Real256E 3D Graphics with 64M share memory Onboard LAN: Realtek 8201B 10/100Mbps Fast Ethernet PHY- Form Factor: microATX  $61.00 includes Shipping

PC Chips "M848ALU" SiS746 Chipset Motherboard for AMD Socket A CPU - Specifications:- Supported CPU: AMD Athlon XP/Athlon/Duron Processors- Chipset: SiS 746 + SiS 963L FSB: 200/266/333MHz- RAM: 3x DIMM for DDR333/266/200 Max 3GB, 2GB Max for DDR400 IDE: 2x UltraDMA 133 up to 4 Devices- Slots: 1x AGP 8X, 5x PCI 32-bit, 1x CNR - Ports: 2xPS2,1xCOM,1xLPT,1xLAN,6xUSB2.0(Rear 4),Audio Ports Onboard Audio: CMI9739A 6-Channel Audio- Onboard LAN: 10/100Mbps Fast Ethernet- Form Factor: ATX  $69.00 Includes Shipping

ASUS A7M DDR160.00 Processor Socket A for AMD Athlon / Duron 550MHz ~ 2GHz+ CPU Chipset AMD 761 266MHz FSB Chipset with VIA VT82C686B South Bridge FSB 266/200MHz Front Side Bus Memory 2 x DDR DIMM Sockets Max. 2GB PC2100/PC1600 DDR SDRAM Expansion Slots 1 x AGP Pro/AGP 4X 4 x PCI 1 x PCI/AMR Shared VGA AGP Pro/4X/2X/1X Slot IDE Ports 2 x UltraDMA/100 Audio C-Media CMI-8738 PCI Audio Controller 4-Channel Speaker Mode Board Size ATX Form Factor: 9.6" x 12.0" (24.5cm x 30.5cm)

ASUS A7A266 163.00 Asus A7A266 DDR266 Socket A ATA100 No Audio MB Specifications *Asus A7A266 DDR Socket A ALI M1647 200/266 *FSB ATX motherboard *Socket A AMD Athlon/Duron processors to 2.5 GHZ+ Chipset: ALi M1647 North Bridge and ALi M1535D+ South Bridge 200/266MHz Front Side Bus 2 unbuffered DIMMs with up to 2GB of PC1600/PC2100 DDR SDRAM 3 unbuffered DIMMs with up to 3GB of PC133 SDRAM C-Media CMI-8738 PCI 6-channel audio chip AGP Pro slot 5 PCI slots, 6 USB ports, 2 Serial and 1 Parallel ports ATA/100 ATX Form Factor

ASUS- A7V Socket A- 133Mhz -$168.00- VIA KT133A AGPset- 1 AGP- 5 PCI- 3 DIMMS-Supports up to 1Gz and faster AMD Athlon SOCKET A CPU's-   ATA Ultra DMA 100

ASUS A7V333 SOCKET A 133 MHZ BUS $164.00 3 DDR - Supports DDR333 (PC2700)- USB 2.0-  VIA KT333 AGPset- 1 AGP- 5 PCI-   Supports AMD XP 2100+ And faster- ATA Ultra DMA 133/100/66   -   View Specs   (Use Back Button To Return)

ASUS A7V333 RAID SOCKET A 133 MHZ BUS $185.00 3 DDR - Supports DDR333 (PC2700)-USB 2.0-  VIA KT333 AGPset-  Supports Raid and Firewire-  1 AGP-   5 PCI-  Supports AMD XP 2100+ And faster- ATA Ultra DMA 133/100/66   -    View Specs   (Use Back Button To Return)

SOYO K7VTAPRO

*200/266MHz System Interface Speed AMD Socket-A based VIA KT133A + 686B ATX Motherboard * Support ATA-100 Hard Dirve *PROCESSOR Socket-A AMD Athlon® processors 550MHz~1.4GHz+ *Supports AMD Thunderbird & Duron CPUs *200MHz System Interface Speed *128Kbyte L1 cache built-in *256Kbyte L2 cache built-in CHIPSET *VIA KT-133A + 686B AGP chipset *FRONT SIDE BUS OPTIONS *Available FSB options of 100/ 133MHz *AUTO PCI CLOCK *The PCI bus speed is automatically set between 30MHz and 41MHz regardless of FSB setting. SYSTEM MEMORY *Three 168-pin SDRAM DIMM sockets Support up to 1.5GB *PC100/PC133 Sdram DIMM support EXPANSION SLOTS *Five 32 bit Bus Mastering PCI slots (v2.2 compliant) *One 16 bit ISA slots (One PCI/ISA Shared slot) *One 32 bit AGP slot (v2.0 compliant, AGP 1X/ 2X/ 4X) *ON CHIP ULTRA I/O PORTS *Two RS-232 Serial Ports (16550 UART compatible) *One Parallel Printer Port (SPP/EPP/ECP mode) *One FDD port (supports 3 mode, 1.2/1.44/2.88 MB FDD) *Provides IrDA port with optional cable for transceiver *TWO ULTRA DMA-33/66/100 IDE PORTS *Supports two independent channels for 4 IDE devices *Two channels support up to PIO mode 4 & UDMA 33/66/100 *Two PCI bus mastering ATA E-IDE ports *ONBOARD AC-97 AUDIO *Sigmatel AC Codec chip *BOARD DIMENSIONS *Four Layer PCB, 30.5cm x 23cm(12" x 9.1") *ATX form factor *BOOT-BLOCK FLASH BIOS *Award PCI BIOS with ACPI function function *Supports multi-boot from E-IDE/SCSI/CD-ROM/FDD/LS120/ZIP *2 Mbit Flash ROM *DOUBLE STACK BACK-PANEL I/O CONNECTORS *PS/2 Mini-DIN mouse & keyboard ports *4 USB ports (2 on back-panel and 2 to the front panel) *2 D-Sub 9-pin male Serial ports *1 D-sub 25-pin female printer port *Audio I/O: 1 LINE-Out, 1 LINE-IN and 1 MIC Jack *One Game port *Enhanced PC Health Monitoring *On-board voltage monitors for +5V, +12V, Vcore, Vtt and Vbatt status *System health status detect *System temperature sensor *CPU temperature monitoring through flexible thermal sensor under processor heatsink   PRICE  $109.00
SOYO SY-K7VDRAGONPLUS 200/266MHz System Interface Speed AMD Socket-A based VIA KT266A ATX Motherboard Support AMD XP Processor *AMD Recommended Motherboard *DDR SDRAM *RAID controller on board *Audio on board, with 6-chanel Hardware Audio *Graphic, Universal AGP Pro slot *Overclocking, setup FSB by 1MHz increment *Network, 10/100 Mbps Ethernet *PROCESSOR *Supports AMD Socket-A type Processor, up to 2000+ MHz *Including Duron & Athlon & XP CPUs *CHIPSET VIA KT266A/8233 CE Ver chipsets *Support 200/266 MHz FSB *SYSTEM MEMORY *Three 184-pin DDR SDRAM 2.5V DIMM sockets Support up to 3GB *EXPANSION SLOTS *Five 32-bit Bus Mastering PCI slots (V2.2 compliant) *One Universal AGP Pro slot (support 1x/2x/4x mode) *On Board Audio Subsystem *On board CMI 8738 Audio chip to provide 6 channels audio solution *Supports optical output & SPDIF output *On Board Ultra I/O CHIP *Two RS-232 Serial Ports (16550 UART compatible) *One Parallel Printer Port (SPP/EPP/ECP mode) *One FDD port (supports 3 mode,.2/1.44/2.88 MB FDD) *Provides IrDA port with optional cable for transceiver *Provides 6 USB ports (2 rear, 4 front) *Ultra DMA IDE Ports *Four independent channels for eight IDE devices (two for Raid) *Supports up to PIO mode 5 & UDMA 33/66/100 *Two PCI bus mastering ATA E-IDE ports *Boot-Block Flash BIOS *Award PCI BIOS with ACPI function *Supports multiple-boot from E-IDE/SCSI/CD-ROM/FDD LS120/ZIP *2M byte Flash ROM *Board Dimensions *Four Layer PCB, 30.5cm x 23cm(12" x 9.05") *ATX form factor *Enhanced PC Health Monitoring *On-board voltage monitors for +3.3, +5V, +12V, Vcore,(TBD) *CPU fan speed monitor (TBD) *CPU temperature monitoring through flexible thermal sensor (TBD) *DOUBLE STACK BACK-PANEL I/O CONNECTORS *PS/2 Mini-DIN mouse & keyboard ports *2 USB ports *One RJ45 connector *Two D-Sub 9-pin male serial port *One D-Sub 25-pin female printer port *Audio I/O: LINE-OUT x1, LINE-IN x1, MIC JACK x1 *One Game port PRICE- $169.75

ABIT KG7-RAID SOCKET A 266 MHZ fbs PRICE $199.75
AMD 761 ChipsetAMD Athlon motherboard with 266MHz front side bus2-Ultra DMA/100 IDE4 DDR SOCKETS 4X AGP, 6 PCI, 4 USB. 2-Ultra DMA/100 RAID CONTROLLERS built-in Supports up to 8 Ultra DMA 33/66/100( RAID 0 /1/0+1).

View Specs   (Use Back Button To Return)

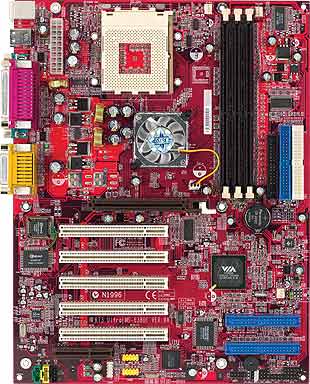

MSI KT3 ULTRA -Raid  PRICE $179.75
Special Features Supports DDR266/333 (PC 2100/2700) Supports ATA-133 IDE Hard Drive Live BIOS Fuzzy Logic 3 Live Driver Promise IDE RAID USB 2.0 Integrated Audio (6-channel codec) CPU Socket A (Socket 462) for AMD® Athlon™/ Athlon™ XP / Duron™ Processor. Support 600MHz up to 2000+ MHz processor and higher Chipset VIA® KT333 chipset. (North-Bridge 552 BGA) 200/266MHz FSB AGP 4x and PCI Advanced high performance memory controller. VIA® VT8233A chipset. (South-Bridge 376 BGA) High Bandwidth V-link Client controller. Integrated Faster Ethernet LPC. (Optional CNR card support) Integrated Hardware SoundBlaster/Direct Sound AC97 audio. Ultra DMA 66/100/133 master mode PCI EIDE controller. ACPI FSB Supports 100/133/166 MHz FSB Main Memory Three 184-pin DDR DIMM. Maximum memory size up to 3GB. Supports 2.5v DDR SDRAM DIMM. Promise 20276 RAID On-Board Controller Supports ATA133 IDE RAID 0 or 1 The two IDE RAID connectors support hard drives only. Note: only two hard disk drives will adopt RAID funcion. Slots One CNR (Communication Network Riser). One AGP 4X slot. Five PCI 2.2 32-bit Master PCI bus slots. Supports 3.3v/5v PCI bus interface. On-Board IDE An IDE controller on the VIA VT8233A chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 66/100/133 operation modes. Can connect up to four IDE devices. Audio Chip Integrated (6-channel S/W audio). Direct Sound AC'97 Audio. 6-channel analog output. SPDIF interface. On-Board Peripherals 1 Floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes. 2 Serial ports (COM A + COM B), 1 Parallel port supports SPP/EPP/ECP mode. 1 IrDA connector for SIR/ASKIR/HPSIR. 1 Audio/Game port. 1 D-Bracket pinheader. 1 S-Bracket pinheader. USB Interface 4x USB 2.0 ports 4x USB 1.1 ports BIOS The mainboard BIOS provides AMI "Plug & Play" Flash BIOS which detects the peripheral devices and expansion cards of the board automatically. The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications. Dimension ATX Form Factor. Mounting 6 mounting holes.

ECS P4ITA SOCKET 423  $116.49

5 PCI slots, 1 4X AGP slot (AGP Pro optional), 1 CNR slot. Sockets 423 for Pentium® 4 processor Intel® 82850 & 82801BA Chipset. Four 184-pin RIMMs with Rambus DRAM support, up to 2GB. AC97 Audio Codec on board.

View Specs   (Use Back Button To Return)
